The Flash III scanning technology offers fast scanning (35 sec/slide) and high throughput (60 slides/hour) (brightfield scanning, 41x optical magnification, 15mm x 15mm area, 15 FOVs Focus Distance, JPG compression, MRXS file format).

In order to comply with frequently used tender specifications, slide loading capacity has been increased to 300. This will reduce idle times and thus further increase slide throughput at both routine and research laboratories.

Continuous loading with vertical slide arrangement ensures easy access to slides in unloaded slide holder magazines. Also, a cover makes sure that no ambient light is shed upon your slides. The reworked slide loader allows for slides ranging from 0.9 mm to 1.2 mm of thickness.

There is no need to stop the scanning process in case of magazine changes and magazine unload, just keep on loading and unloading your slides into the system as they come!

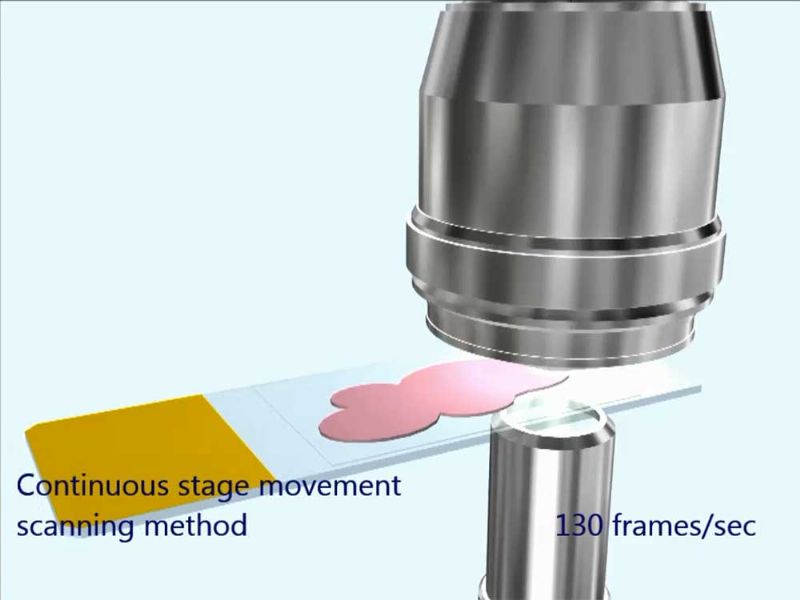

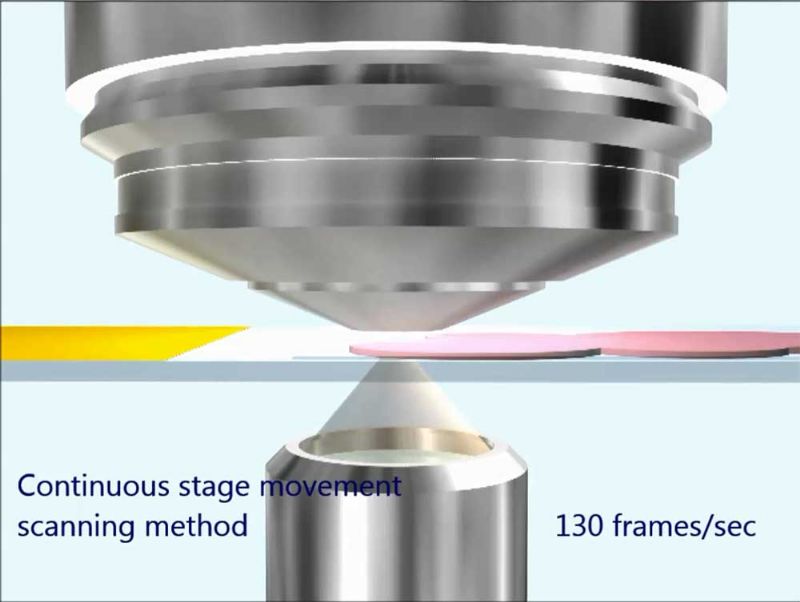

The light source offers very high stability in time over the lifetime with sub-millisecond switching times. Directly mounted on the scanner for maximum light coupling, the digital image is recorded with continuous slide movement by flashing the stroboscope light source in repetitive rhythm with perfect synchronization.

The camera directly turns the light on for exposure time only.

Now you can have two high quality Zeiss Plan-Apochromat objectives in the scanner and also a camera for brightfield and one for fluorescence which you can change with a mouse click. The PANNORAMIC 250 Flash III can achieve up to 45x resolution in brightfield and up to 63x resolution in fluorescence.

9 physical filter cubes and 45 logical fluorescence channels are available. A new camera and the new objective elevate fluorescence scanning to a new level.

New monochrome PCO edge 4.2 bi camera provides even better fluorescence image quality, especially for immunohistochemistry (IHC) applications and opal stainings. The sensitivity of the chip is extended in the 720-750 nanometer range, which reduces exposition time and further improves image quality. Also, the new camera works directly through a USB 3.0 port, no additional graphics card is necessary.

New optional 10x objective reduces fluorescence scanning time and provides further improved image quality.

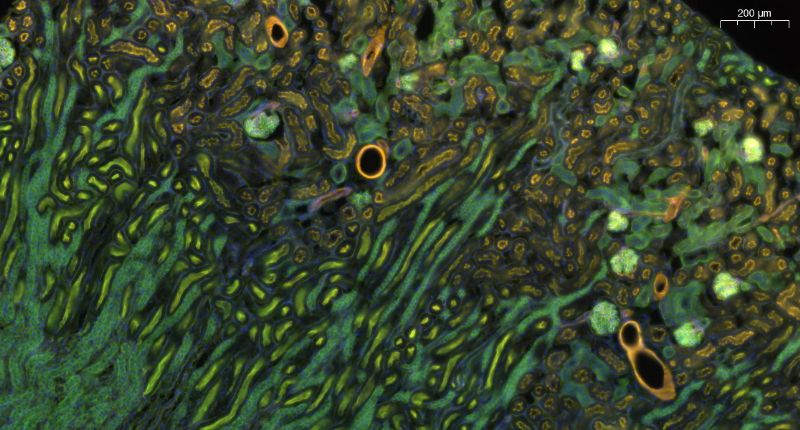

Exceptional image quality both in brightfield and up to 9-channel fluorescent scanning. Up to 80x brightfield and 60x fluorescence magnification by default, all available within the same instrument, coupled with an advanced FISH scanning technique.

The new slide sensor ensures that empty slots are automatically skipped during scanning, further accelerating the scanning process.

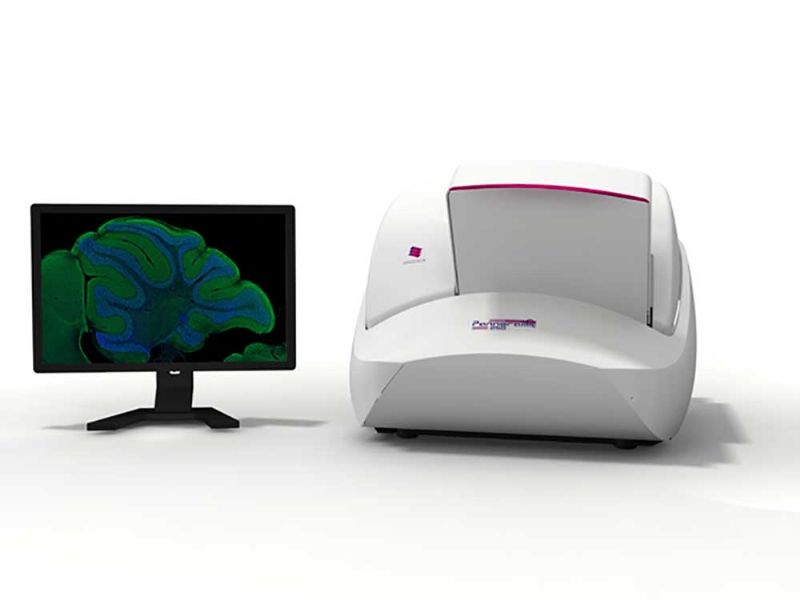

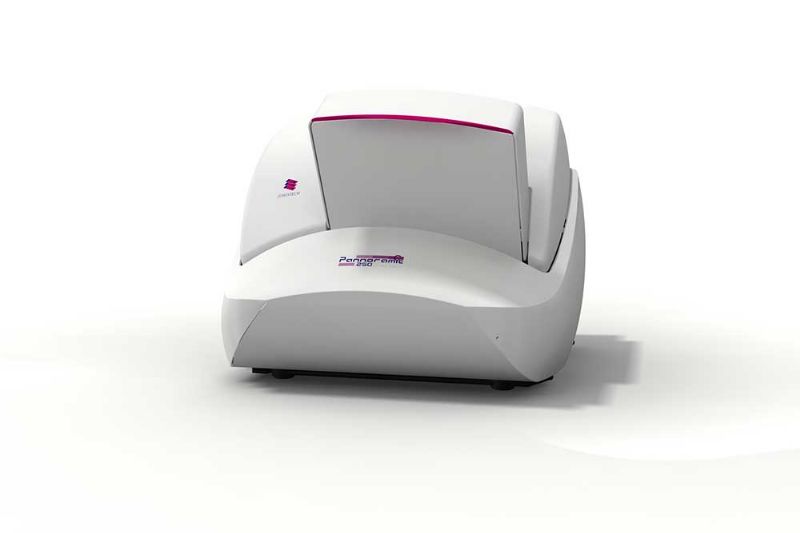

The PANNORAMIC 250 Flash III is a great choice for large laboratories looking for high-throughput and high-quality scanning solution in brightfield and fluorescence.

PANNORAMIC Scanners are powered by the PANNORAMIC Scanner Software for Research, which provides versatile, fast and high-quality slide scanning according to the imaging needs of cancer research laboratories, pharmaceutical companies or medical research institutes. Its key features include

The 3DHISTECH software product portfolio is the most comprehensive one on the market. Whether it is tissue microarrays, IHC stainings, quantitative measurements, e-learning application and more, 3DHISTECH offers solutions for your research work.
