PANNORAMIC 250 Flash III DX
PANNORAMIC® 250 Flash III DX o?ers medium-to-large routine pathology laboratories a high-quality and high-speed scanning solution to high-throughput applications.
The new optical path has been developed for diagnostic requirements allowing the color fidelity of stained pathological and cytological samples to be constant. As a result, the slide has a color as if looking under a microscope: the optical path returns real colors, there is no color difference, so it can be safely used to create a diagnosis.
Fast scanning and high throughput
The PANNORAMIC® 250 Flash III DX is a great choice for medium-to-large medical institutions looking for a high-throughput and high-quality scanning solution. Integrated with a unique information system, we offer not just a diagnostic digital slide scanner with excellent image quality for producing accurate diagnosis, but we also ensure a complete integrated image management system.

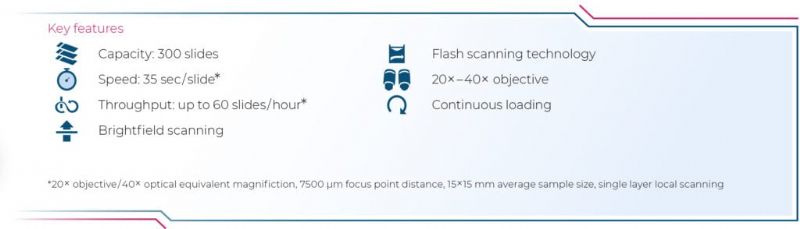

Key Features
Fast scanning and high throughput
The PANNORAMIC® 250 Flash III DX offers fast scanning (35 sec/slide) and high throughput (up to 60 slides/hour) (*20x objective / 40x optical equivalent magnification, 10000 ?m focus point distance, 15×15 mm average sample size, single layer local scanning).
Exceptional image quality
Thanks to the high-quality objectives, adapters and 12 MP camera with Xenon Flash illumination, PANNORAMIC® 250 Flash III DX offers exceptional image quality in brightfield scanning. PANNORAMIC 250 Flash III DX can achieve up to 41x / 82x optical magnification and 0.242 / 0.121 µm/pixel resolution.
Hardware supporting walk-away operations
Continuous loading: it allows laboratories to continuously load slides created in a coverslipper machine into the scanner without interrupting the scanning process. There is no need to stop the scanning process in case of magazine changes and magazine unload, just keep on loading and unloading your slides into the system on the go!
Supported image formats
The PANNORAMIC® 250 Flash III DX supports DICOM as a global standard, and MRXS as a proprietary file format.
Application
The PANNORAMIC® 250 Flash III DX is a great choice for medium-to-large medical institutions looking for a high-throughput and high-quality scanning solution. Integrated with a unique information system, we offer not just a diagnostic digital slide scanner with excellent image quality for producing accurate diagnosis, but we also ensure a complete integrated image management system.
Product certificates
PANNORAMIC Diagnostic Scanners are powered by the PANNORAMIC Diagnostic Scanner Software, which provides one-touch, fast and high-quality slide scanning according to the needs of routine pathology laboratories.
Key features
- Fully automated scanning operation
- AI-based automated tissue detection for faster scanning
- Excellent image quality for accurate diagnosis: focus quality check with automated rescanning, adaptive focus point assignment
- Integrated user management to ensure secure access to the scanner
- Event logging and remote monitoring with CentralLogService application) to follow user activity, scanning events and errors – with automated report generation
- Handling more servers at the same time for even more efficient storage management
- Automated self-calibration during scanning for consistent image quality
The product has been designed for diagnostic purposes, although the medical device registration process is pending in Europe. Important information for the USA: For research and education use only, not for use in diagnostic procedures. This product has not been approved or cleared as a medical device by the U.S. Food and Drug Administration.
